TDP Therapy Lamp (Model: CQ-36)

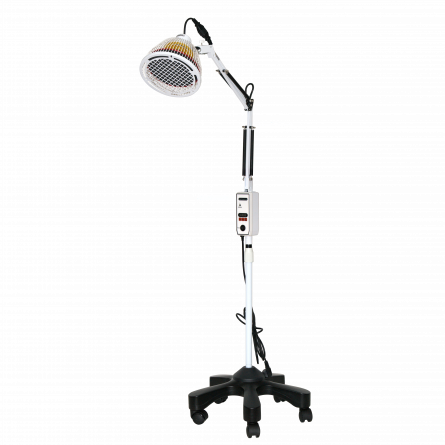

TDP floor lamp with single head and digital display

New: Improved base for better stability

Model CQ36 (digital)

Brand: Xinfeng (Manufactured by Chongqing Xinfeng Medical Instruments Co. Ltd. )

The TDP lamp (also called Moxal lamp, or China lamp) is a therapy device proven in practice, which was invented in 1980 in China by a group of scientists and doctors at the silicate research institute Chongqing. TDP is an abbreviation for "Teding Diancibo Pu".

Properties:

• The TDP lamp's heating plate is coated with natural minerals ( Ø 16. 5 cm) and is heated on the backside
• Wavelength range of infrared radiation: 2 to 25 micrometers
• Wide range of applications
• Often used in conjunction with acupuncture or as an alternative to moxa therapy. Either direct irradiation without needle penetration is performed or acupuncture needles are first pierced and then irradiated with the TDP lamp (replacement for the hot needle technique)
• The patients feel an extremely pleasant and soothing warmth.

Functionality:

The infrared spectrum of 2 to 25 micrometers is particularly well absorbed by the human body. A ceramic plate covered with over 30 minerals generates exactly this bandwidth of electromagnetic waves at approx. 280 degrees Celsius.

The mineral plate (Art. No. : Z-28GE) should be replaced after 1,000 operating hours.

Technical Specifications:

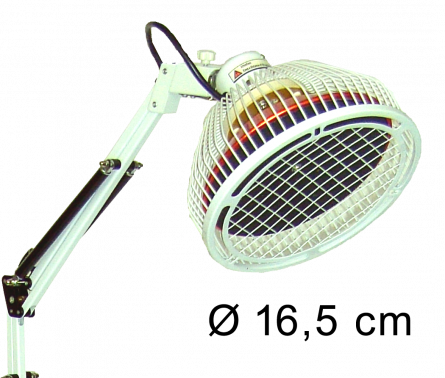

• Rotating and swivelling head (plate Ø 16. 5 cm, head size approx. 20 cm)
• Multiple sprung arm (floor distance: 30-152 cm, treatment distance: 20-30 cm)
• Power supply: 220 - 240 Volt
• Power Output: 250 Watt
• Operating control: On / Off or digital timer, adjustable from 5 to 95 minutes, 5 minutes steps
• Digital timer with display of current therapy duration and operating hours
• Base with 5 castors, suitable for carpets and parquet
• Weight: 11 kg

The TDP lamp has been CE registered by TÜV SÜD!

Scope of delivery:

• TDP Lamp CQ36
• english manual
• 2 spare fuses
• 2 years warranty
